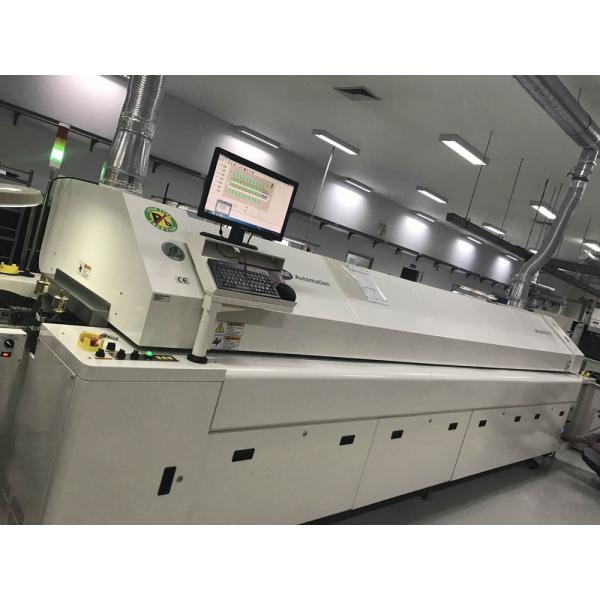

Practical Lead Free Hot Air Reflow Oven F10 Up 10 Hot Air Bottom 10 Hot Air Heating Zone PC Control
- JAGUAR's F12 Lead-free Hot Air Reflow Oven, is one of JAGUAR Practical Series, which can meet high-end SMD soldering requirements, such as Consumer Electronics, Home Appliances, Instruments and Apparatus, LED high power lighting products and so on.
| Model | Jaguar F10 |
| Heating System |
| Number of heating zones | Up 10 Bottom 10 |
| Heating passage | 3890MM |
| No. of Cooling Zone | Up 2 Bottom 2 |
| Cooling style | Force cooling air |
| Conveyor System |
| Max. Width of PCB | 400mm |
| Mesh belt width | 450mm |
| Conveyor Direction | L→R(or R→L) |
| Process Height | 900±20mm |
| Conveyor type | Mesh Belt and Chain Conveyor |
| Conveyor speed | 0-1000mm/min |
| Fixed track | Front track fixed(option: rear track fixed) |
| Control System |
| Power supply | 5 line 3 phase 380V 50/60Hz |
| Total power consumption | |
| Startup power consumption | 42kw |
| Steady consumption | 8-12KW |
| Ramp Up time | About 25 mins |
| Temp. setpoint | Room temperature-300℃ |
| Temp. control method | PID close loop control + PC |
| Temp. control precision | ±1℃ |
| Temp. deviation on PCB | ±2℃ |
| Data storage | Process Data and status storage (80 GB) |
| Nozzle plate | Aluminum Alloy Plate |
| Abnormal Alarm | Abnormal temp. (overtemp/low temp.) |
| Board dropped alarm | Tower light: Amber-warning, Green-normal, Red-abnormal |
| General |
| Dimension(L*W*H) | 5800×1320×1490mm |
| Weight | 2150KG |
| Color | Computer grey |
Advantages
1. PC and PLC controller constitute a perfect and stable control system.
2. Powerful software features, PCB boar online temperature measurement and print and save the temp. curve at any time, easy to learn control software, can learn to operate within a few minutes.
3. Heating is a rolling start mode, providing the perfect solution for the customers with limited power.
4. Windows XP operating interface with powerful and simple operation.
5. The air flow model of imported reflow welding, and the hot air is uniformly sprayed on the surface of the plate through the static pressure effect, and the transverse temperature difference is less than +-2ºC
1. The temperature difference between the heat preserviation zone and the reflow zone can reach 100ºC, which is in full accord with the lead-free welding standard, the upper and lower body of the whole machine are all hot air type stucture.
2. Imported brand electrical component like Mitsubishi air switch, Schneider Contactor, Carlo Gavazzi SSR, Omron intermediate relay, Delta inverter and so on, can guarantee the system stability.
3. Variable speed control of wind motor speed, suitable for welding a variety of special plate(ultra small and light compenents), maybe throught the transfer of high temperature zone, reduce wind speed to prevent the shift of components.
4. The heating elements are heating wires, the heat efficiency is high, the air resistance is small, and the utility model is favorable for improving the heat exchange rate and saving electricity.
5. Rapid heating, it takes just 25 minutes from ambient to setting temperature.
6. Chain guide rail and stainless steel mesh belt conveyor, no deformation.
7. Furnance adopt electric screw to open, no need any air pressure.
